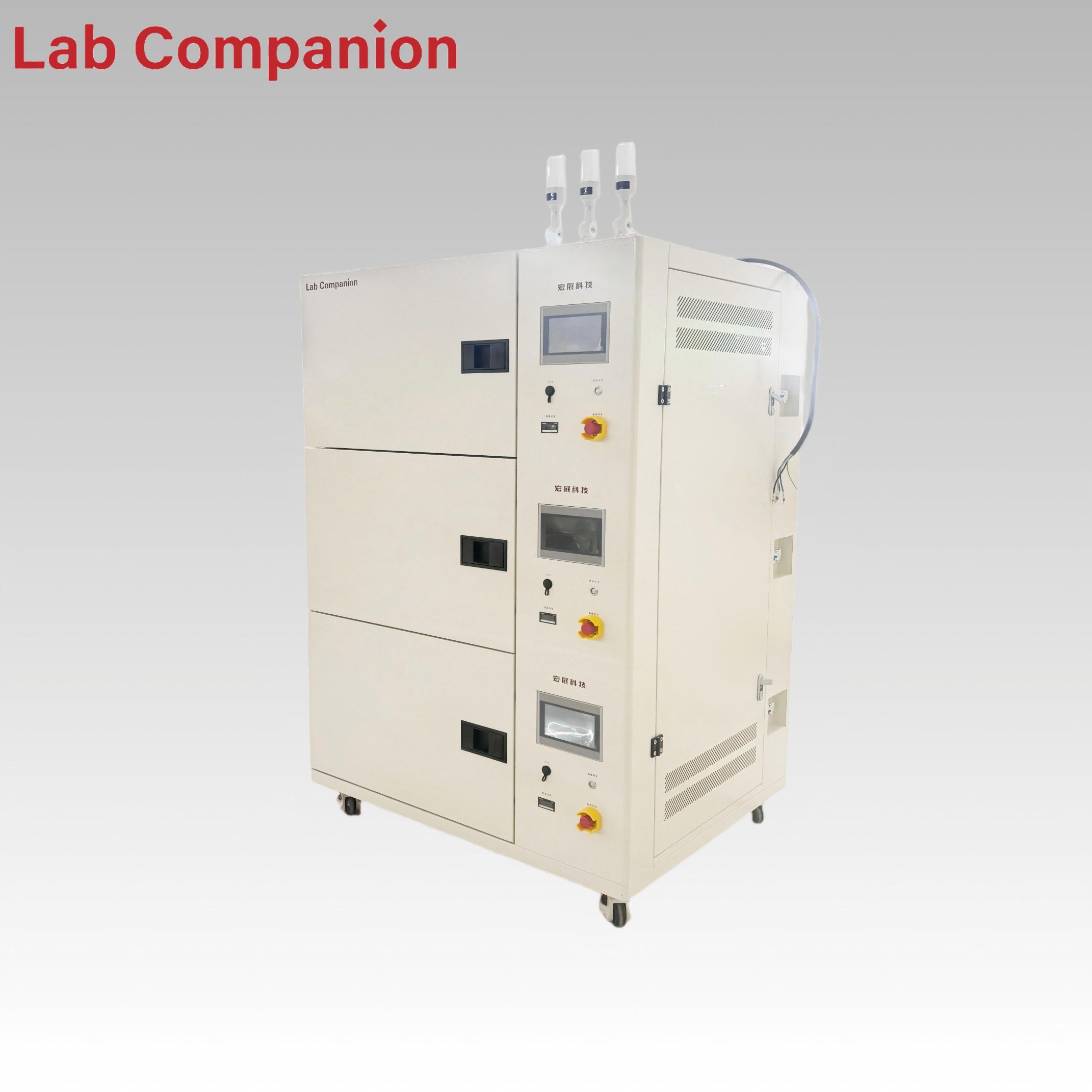

In industrial processes like electronic component aging, new material curing and precision part drying, equipment temperature control, space utilization and stability directly impact product quality and efficiency. The 86L three-layer compound precision oven, with optimized structure and core technology upgrades, is an ideal choice for balancing mass production and refined processes. This article analyzes its key industrial advantages from core performance perspectives.
I. ±0.5℃ High-Precision Temperature Control, Laying a Solid Foundation for Process Stability
Precision industrial processing has extremely low tolerance for temperature fluctuations; minor deviations may cause product performance degradation or batch scrapping. Equipped with a high-precision PT100 temperature sensor and intelligent PID self-tuning control system, this oven achieves ±0.5℃ precise temperature control from room temperature to 300℃, reducing temperature fluctuation by over 40% compared to traditional equipment. Combined with multi-zone independent heating and optimized air duct design, internal temperature uniformity is controlled within ±1℃, ensuring consistent heating of multi-layer materials and improving yield of processes such as electronic component aging testing and composite curing.
II. Three-Layer Compound Structure + 86L Capacity, Balancing Efficiency and Flexibility
To meet industrial needs of multi-batch, small-batch or same-batch multi-specification processing, the equipment adopts a three-layer independent cavity design. The 86L capacity enables one-time multi-material partition processing. Each cavity supports independent parameter setting (temperature, holding time, etc.), allowing simultaneous same-process batch production or different material drying/curing, greatly improving equipment utilization and reducing multi-category production costs. Detachable shelves enhance space adaptability, fitting processing needs of PCB boards, electronic components, small auto parts and other materials.
III. Efficient Energy-Saving Design, Reducing Long-Term Operating Costs
Long-term energy consumption is a key concern for enterprises. This oven adopts a double-layer stainless steel structure filled with high-density ceramic fiber insulation (thermal conductivity <0.035W/(m·K)) and a sealed door, reducing heat loss and improving insulation by 30% vs. traditional equipment. The intelligent temperature control system dynamically adjusts heating power to avoid ineffective energy use. Equipped with a high-efficiency centrifugal fan for forced hot air circulation, the heating rate reaches 5-10℃/min, shortening preheating time, improving thermal efficiency and significantly reducing long-term electricity costs.
IV. Comprehensive Safety Protection, Ensuring Production Continuity
Safety is critical in industrial production. The equipment has multiple protection mechanisms: over-temperature alarm (auto power-off when exceeding set value by 10-20℃), leakage protection (grounding resistance ≤4Ω), and furnace door safety interlock (immediate heating stop when opened to prevent scalds). It also features motor overload protection and power-off memory (auto recovery of parameters after restart, avoiding material loss from process interruption). High-quality stainless steel inner tank and high-temperature resistant heating tubes ensure stable long-term high-temperature operation (heating element service life >30,000 hours), reducing maintenance and downtime.
V. Intelligent Control, Adapting to Industry 4.0 Production Needs
Equipped with a PLC control system and touch screen interface, the equipment supports storage of over 10 program groups. It can preset complex temperature curves for automatic multi-stage heating and heat preservation, reducing manual errors. Optional RS485/USB interfaces enable real-time temperature data export and remote monitoring, facilitating process tracing and optimization. Simple operation logic reduces training costs, allowing quick mastery by non-professionals and meeting large-scale standardized production requirements.
In summary, with core advantages of precise temperature control, efficient space utilization, energy saving and safety, the 86L three-layer compound precision oven perfectly fits precision processing needs of electronics, automotive and new material industries. Its design balancing production efficiency and process flexibility meets current enterprise needs and adapts to future capacity expansion and product upgrading, serving as a cost-effective solution in industrial precision heating.
